Thông tin chi tiết sản phẩm:
|
| Chất liệu mùa xuân: | Thép không gỉ | Thông số kỹ thuật: | Lỗ trục 12mm 16mm |
|---|---|---|---|
| Mẫu số: | CM | Đất nước xuất xứ: | Trung Quốc |
| Sản phẩm: | OEM có thể tùy chỉnh | DỊCH VỤ: | OEM & ODM |
| Vật mẫu: | Có thể cung cấp | Xử lý: | Cơ sở vẽ |
| Vận chuyển: | Thời gian giao hàng nhanh hơn | Bơm: | Bơm Grundfos |
Shaft Size 12mm Horizontal Type CM1/3/5 Pump (Material:SiC/SiC/Viton)
Shaft size 16mm Horizontal Type CM10/15/25 Pump (Material:SiC/SiC/Viton)
Suitable for CR, CRN, and CRI series Pumps
|
Temperature
|
-30ºC to 200ºC, Dependent on the elastomer
|
|
Pressure
|
Up to 10 bar
|
|
Speed
|
Up to 15 m/s
|
|
End play/axial float allowance
|
±0.1mm
|
|
Size
|
12mm to 16mm
|
|
Brand
|
JR
|
|
Face
|
SiC
|
|
Seat
|
SiC
|
|
Elastomer
|
NBR, EPDM, VITON
|
|
Spring
|
SS304, SS316
|
|
Metal parts
|
SS304, SS316
|
HHHHNNNNNNNNNN
Description:

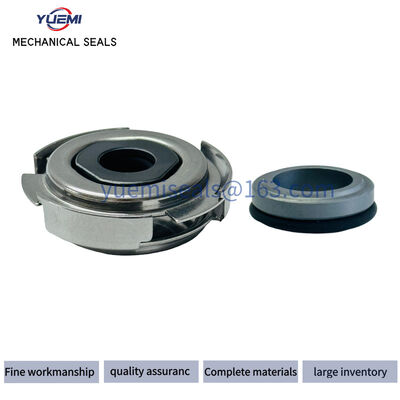

Gr0ndf0s CR Replacement Cartridge Mechanical Seals
Standard Shaft Size:12mm,16mm
|
Temperature
|
-30ºC to 200ºC, dependent on the elastomer
|
|
Pressure
|
Up to 10 bar
|
|
Speed
|
Up to 15 m/s
|
|
End play/axial float allowance
|
±0.1mm
|
|
Size
|
12MM 16MM
|
|
Brand
|
YUEMI
|
|
Face
|
Carbon, SiC, TC
|
|
Seat
|
Ceramic, SiC, TC
|
|
Elastomer
|
NBR, EPDM, FKM etc.
|
|
Spring
|
SS304, SS316
|
|
Metal parts
|
SS304, SS316
|
|
Idividual Packing
|
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.
|
Operating Range:

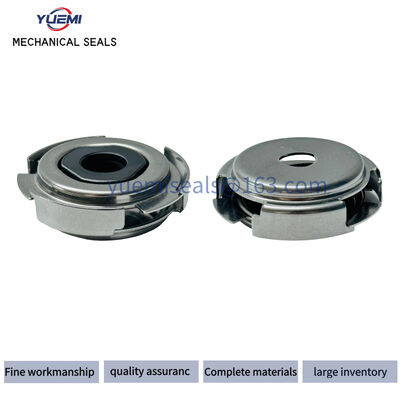

Cartridge Pump Seal for Grondfos(mechanical seal, pump seal)
Description:
Equivalent with type H.
Shaft size: 12MM,16MM
Balanced, cartridge O-ring seal unit with rigid torque transmission system
This seal type is assembled in a cartridge unit which makes replacement safe and easy.
Similar to the type D seal, the balancing makes this O-ring seal type suitable for high-pressure applications.
Material:
Rotary Ring: SiC/TC
Stationary Ring: SiC/TC
Elastomers: NBR/Vit
Springs: SS304/SS316
Metal Parts: 410S/SS304/SS316
Mediums: water, oil, sewage, weak acid, weak alkali, and other weak corrosive mediums.
Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
